SENTINEL 9" ELITE WITH POSITION LIGHT (BLACK)

Unrivaled Performance, Distinctive Design

The Sentinel 9" Elite represents the pinnacle of high-performance LED lighting, designed for those who demand superior illumination, durability, and a striking visual aesthetic. Featuring 32 high-output LEDs, this driving light delivers exceptional beam distance and spread, ensuring maximum visibility in all driving conditions. With its black internal bezel and integrated position light function, the Sentinel 9" Elite offers both style and substance in a premium package.

Key Features:

• Exceptional Lighting Performance – 32 high-output LEDs deliver a powerful beam with optimized spread and distance.

• Stealth Black Design – Black internal bezel and printed circuit boards for a contemporary, sleek appearance.

• Integrated Position Light – White and amber options for enhanced visibility and aesthetic appeal.

• Advanced Optical Technology – Ultra-reflective vacuum-metallized optics provide superior light distribution.

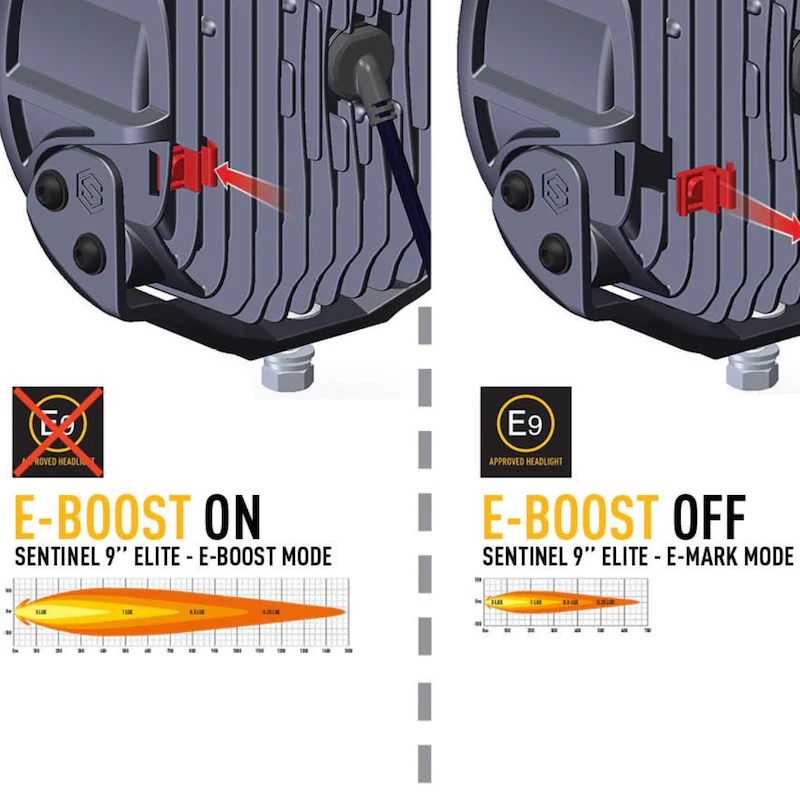

• ECE Approved High Beam – Regulation 112 compliant with E-Boost technology for on-road use.

• Optimized Colour Temperature – 5000K LED temperature ensures sharp contrast and reduced eye fatigue.

• Premium Build Quality – Anodized and powder-coated aluminium housing for ultimate corrosion resistance.

• Unbreakable Lens – Polycarbonate lens with hardcoat lacquer for maximum impact protection.

• Efficient Thermal Management – CAE-optimized heatsink and electronic thermal regulation maintain peak performance.

• Weatherproof Construction – IP68-rated watertight protection ensures reliability in extreme conditions.

• Secure Mounting System – Supplied with a ‘slim’ diecast aluminium mounting bracket featuring Sentinel branding.

• Designed & Manufactured in the UK – Built to the highest standards for long-term durability and reliability.

• 5-Year Warranty – Industry-leading warranty coverage for peace of mind.

Technical Specifications

Specification	Boost Mode	Low Output Mode
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs
Weight	2.5 kg	2.4 kg
Total Luminous Flux	15,232 Lm	3,045 Lm
Total Driver 'FOV' Flux	8,940 Lm	1,789 Lm
Colour Temperature	5000K	5000K
Number of LEDs	32	32
Power Consumption	137 Watts	27 Watts
Current Draw (at 14.4V)	9.5 Amps	1.9 Amps
High Beam Certification	ECE R112	ECE R112
E-Mark Ref	50	20
Position Light (White)	ECE R7	ECE R7
Horiz Beam Angle	52 Deg	52 Deg
0.25 lx Line	1800m	850m
0.5 lx Line	1273m	600m
1 lx Line	900m	424m
3 lx Line	500m	240m

What's Included:

• 1x Sentinel 9" Elite LED Lamp

• 1x ‘Slim’ Mount Kit (1141K)

• 1x Installation Instructions

Built to withstand the toughest conditions while providing superior lighting performance, the Sentinel 9" Elite with Position Light (Black) is the ultimate choice for drivers seeking excellence. With its cutting-edge technology, rugged construction, and premium design, this driving light sets the benchmark for high-performance auxiliary lighting.
